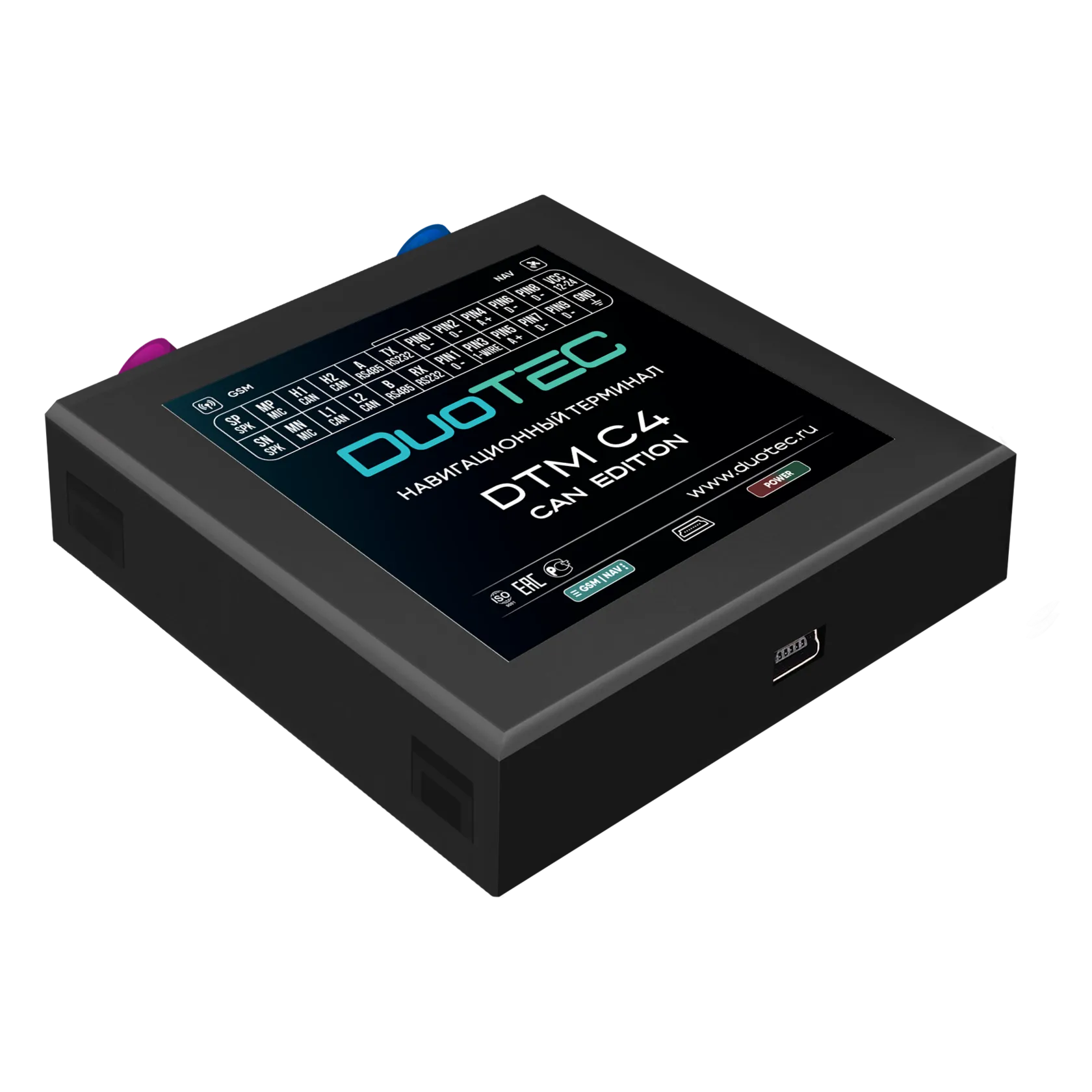

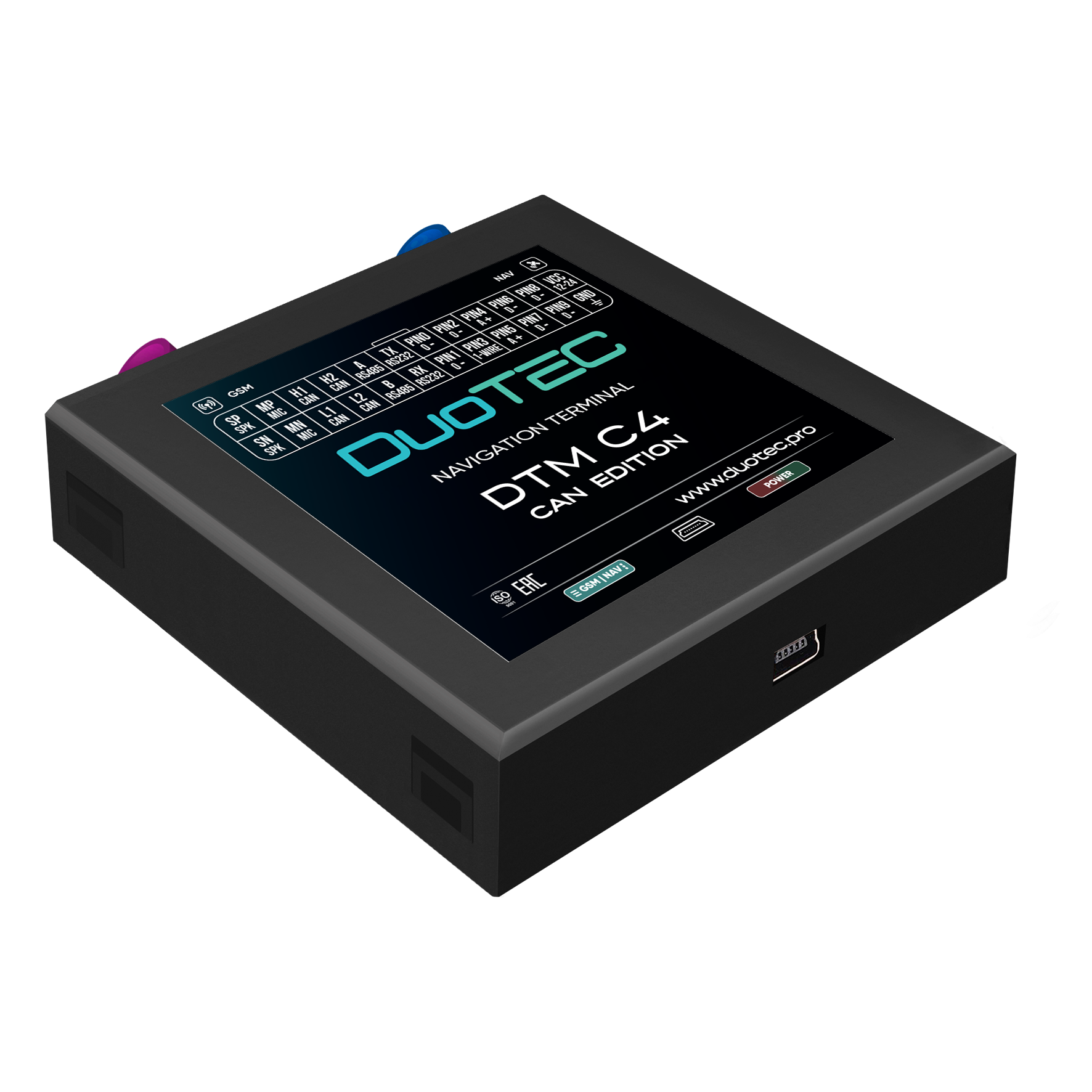

For more comprehensive control of a vehicle or the equipment installed on it, the device supports connection of various sensors and control systems, including discrete, analog, frequency-pulse, and digital (1-WIRE, RS485, RS232, and two CAN lines) as well as Bluetooth sensors.

Backup battery ensures uninterrupted operation of the device in the event of external power loss, while notifying about this event.

Built-in motion sensor is used to optimize energy consumption and monitor driving behavior.

Alternative positioning makes it possible to determine location even in the absence of navigation signals.

Additional functions, such as Telegram messages, user logic, universal BLE integration, black and white lists of GSM operators, wireless identification, and geofences, make this device versatile and convenient for monitoring.

• GSM modem: 2G | 4G
• GSM antenna: external
• SIM cards: 2
• SIM chip: optional
• Navigation module: GPS | GLONASS | BeiDou | Galileo | QZSS
• Navigation antenna: external
• Power supply: 8–50 V
• Inputs: 6
• Outputs: 4
• Motion sensor: yes
• RS232: yes
• RS485: yes
• CAN: 2 buses
• 1-WIRE: yes
• BLE (Bluetooth): yes
• Wi-Fi module: yes
• USB: mini
• Built-in battery: optional
• Wired voice communication: yes
• microSD card: optional
• Case tamper sensor: optional
• Dimensions (L×W×H): 70×75×22 mm
• Weight: 65 g

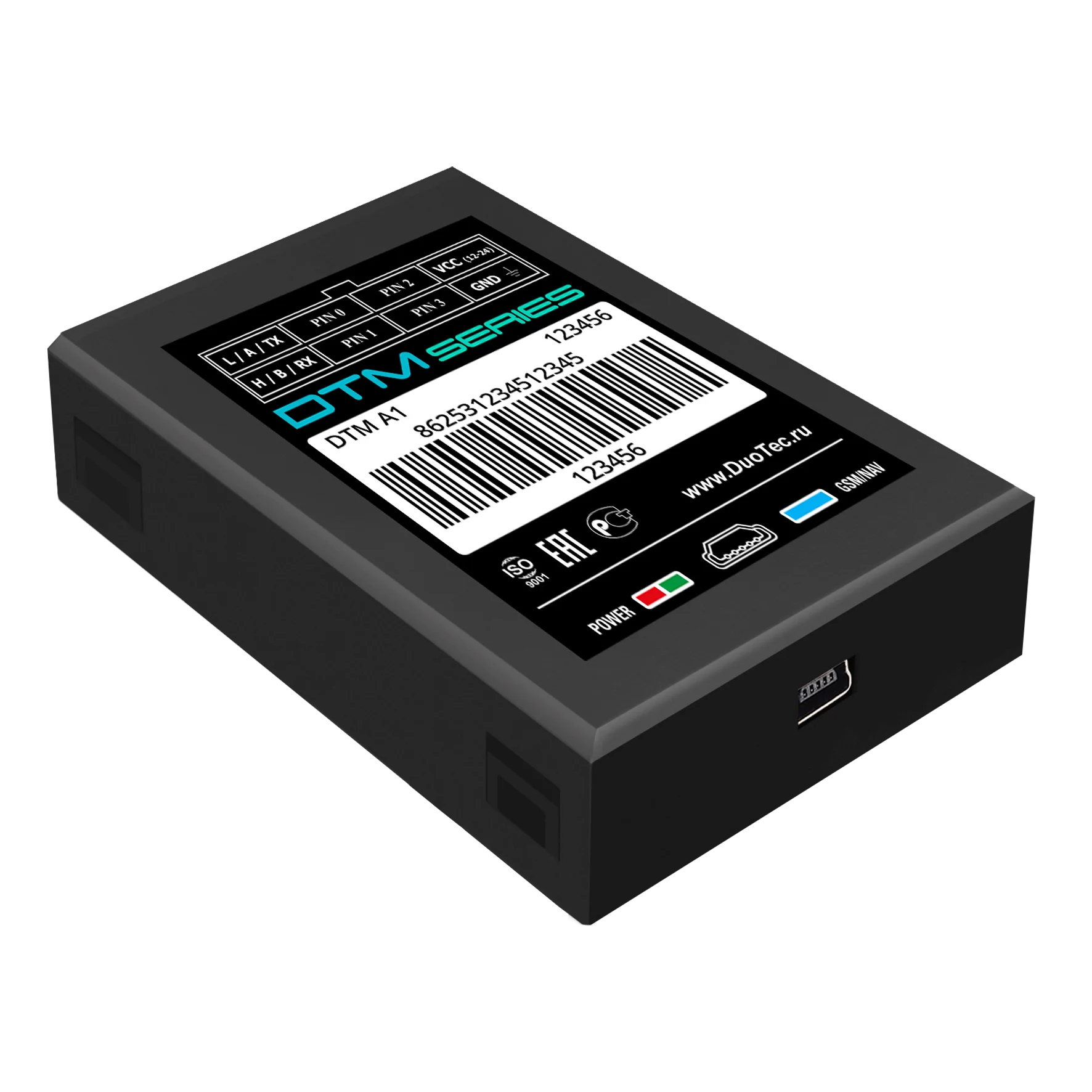

Part No.: A1

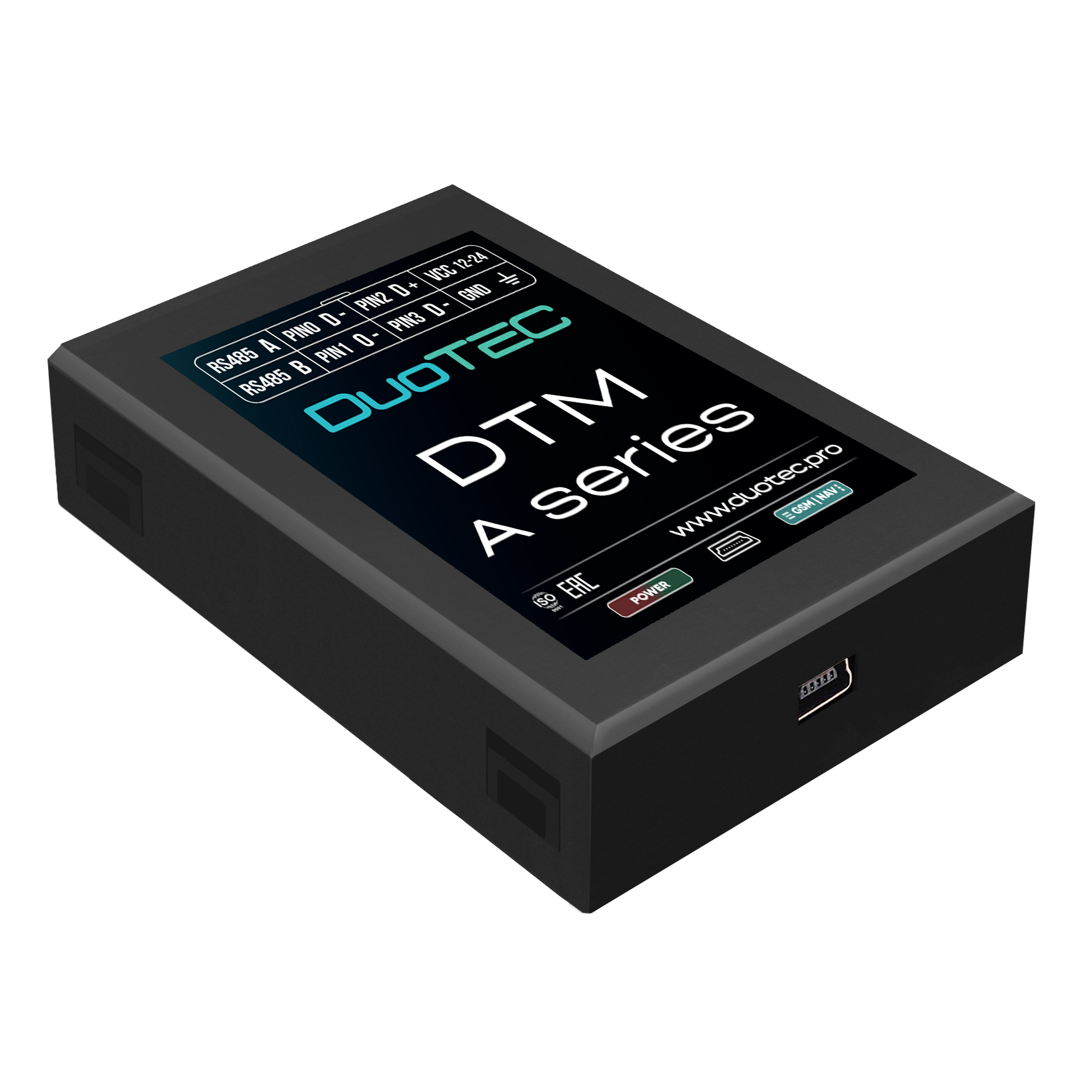

The A Series navigation controllers are designed for use within various vehicle tracking systems where it is necessary to record geographic location, the status of installed sensors, alerts when the panic button is pressed, etc.

This series features built-in Bluetooth, built-in and external antennas, a SIM card or SIM chip, RS-485 | RS-232, a backup battery, and an accelerometer.

A1 is the most affordable version in the series for solving basic monitoring tasks. Quick and easy device connection requires no special skills. Bluetooth is provided for connecting external devices and Low Energy sensors. You can connect a frequency FLS.

Get long autonomous tracker operation with a backup battery.

A wide range of capabilities at a минимальную cost.

Perfect for rental services, taxis, and fleets consisting of passenger cars.

• GSM modem: 2G
• GSM antenna: built-in
• SIM cards: 1
• SIM chip: optional
• Navigation module: GPS | GLONASS
• Navigation antenna: built-in
• Power supply: 8–50* V
• Inputs: 3
• Outputs: 1
• Motion sensor: yes
• RS232: no
• RS485: no
• CAN: no
• 1-WIRE: no
• BLE (Bluetooth): yes
• Wi-Fi module: no
• USB: mini
• Built-in battery: optional
• Wired voice communication: no
• Dimensions (L×W×H): 70×53×22 mm
• Weight: 50 g

Part No.: A2

The A Series navigation controllers are designed for use within various vehicle tracking systems where it is necessary to record geographic location, the status of installed sensors, alerts when the panic button is pressed, etc.

This series features built-in Bluetooth, built-in and external antennas, a SIM card or SIM chip, RS-485 | RS-232, a backup battery, and an accelerometer.

A2 is a budget tracker with optional digital interfaces.

Connect digital fuel level sensors (FLS) via RS-485. RS-232 is available as an option.

Quick and easy device connection requires no special skills.

Bluetooth is provided for connecting external devices and Low Energy sensors.

Get long autonomous tracker operation with a backup battery.

The most popular set of features in a single unit.

Perfect for rental services, taxis, and fleets consisting of passenger cars and commercial vehicles.

• GSM modem: 2G
• GSM antenna: built-in
• SIM cards: 1
• SIM chip: optional
• Navigation module: GPS | GLONASS
• Navigation antenna: built-in
• Power supply: 8–50* V
• Inputs: 3
• Outputs: 1
• Motion sensor: yes
• RS232: optional
• RS485: yes
• CAN: no
• 1-WIRE: no
• BLE (Bluetooth): yes
• Wi-Fi module: no
• USB: mini
• Built-in battery: optional
• Wired voice communication: no
• Dimensions (L×W×H): 70×53×22 mm
• Weight: 50 g

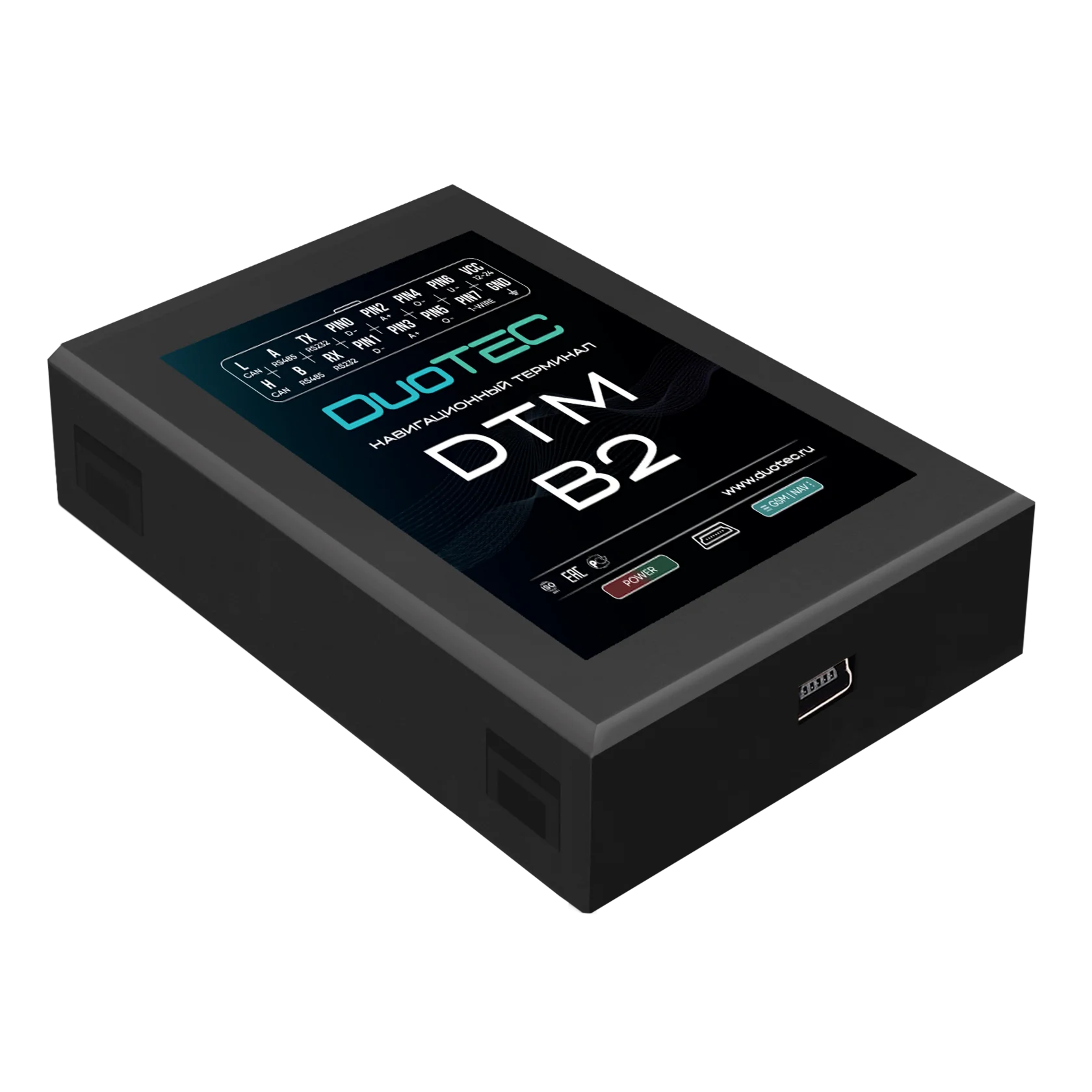

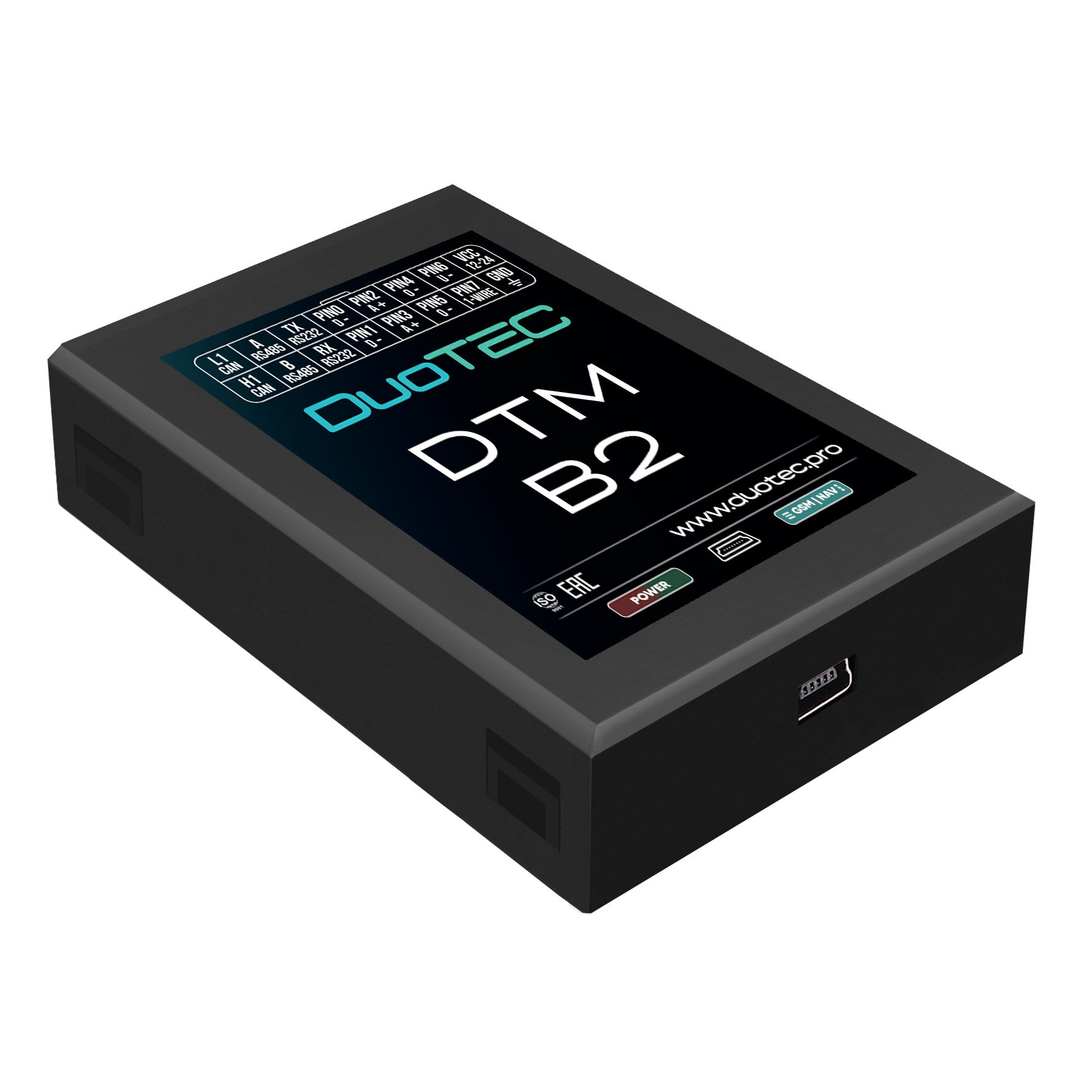

Part No.: B2

The universal B Series navigation controllers are designed for use within various tracking systems for stationary assets, vehicles, and trailers where it is necessary to record geographic location, collect data on the status of installed sensors (FLS, CAN data), alerts when the panic button is pressed, compliance with temperature conditions, and much more.

This series is intended to solve basic tasks in commercial vehicle monitoring and remote asset control. Key features include:

Built-in CAN module with two lines, providing full control over the asset without additional readers.

1-Wire for connecting identification keys or temperature sensors.

RS-485 for connecting digital fuel level sensors (FLS) and other sensors.

RS-232 for connecting additional control systems.

Bluetooth for connecting external devices and Low Energy sensors.

Support for using 2 SIM cards.

With a backup battery configuration, you get extended autonomous operation of the tracker.

• GSM modem: 2G
• GSM antenna: built-in
• SIM cards: 2
• SIM chip: optional
• Navigation module: GPS | GLONASS | BeiDou | Galileo | QZSS
• Navigation antenna: built-in
• Power supply: 8–50* V
• Inputs: 5
• Outputs: 3
• Motion sensor: yes
• RS232: yes
• RS485: yes
• CAN: 1 bus
• 1-WIRE: yes
• BLE (Bluetooth): yes
• Wi-Fi module: no
• USB: mini
• Built-in battery: optional
• Wired voice communication: no
• Dimensions (L×W×H): 70×52×22 mm
• Weight: 51 g

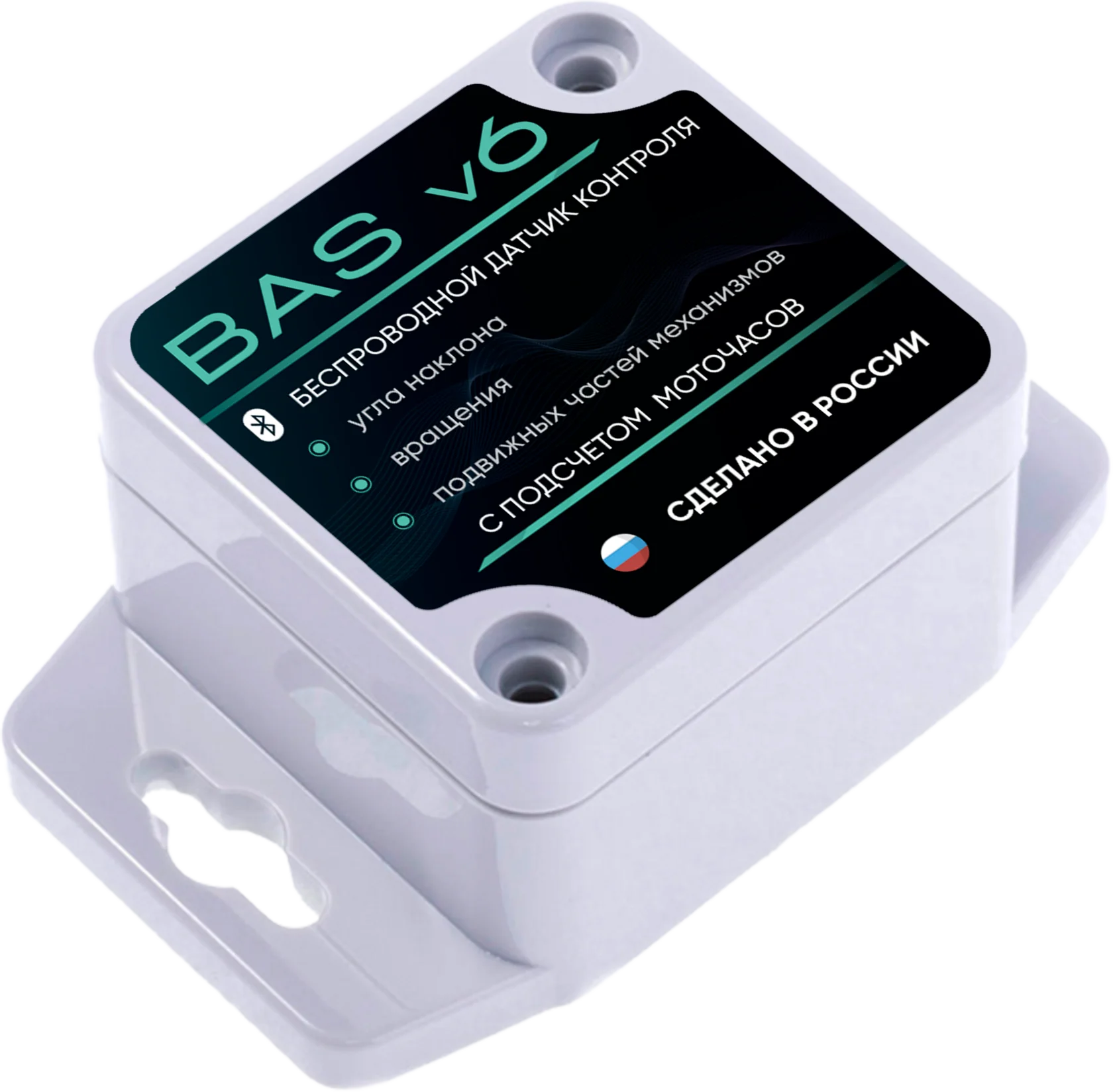

Part No.: BLE-ANGLE

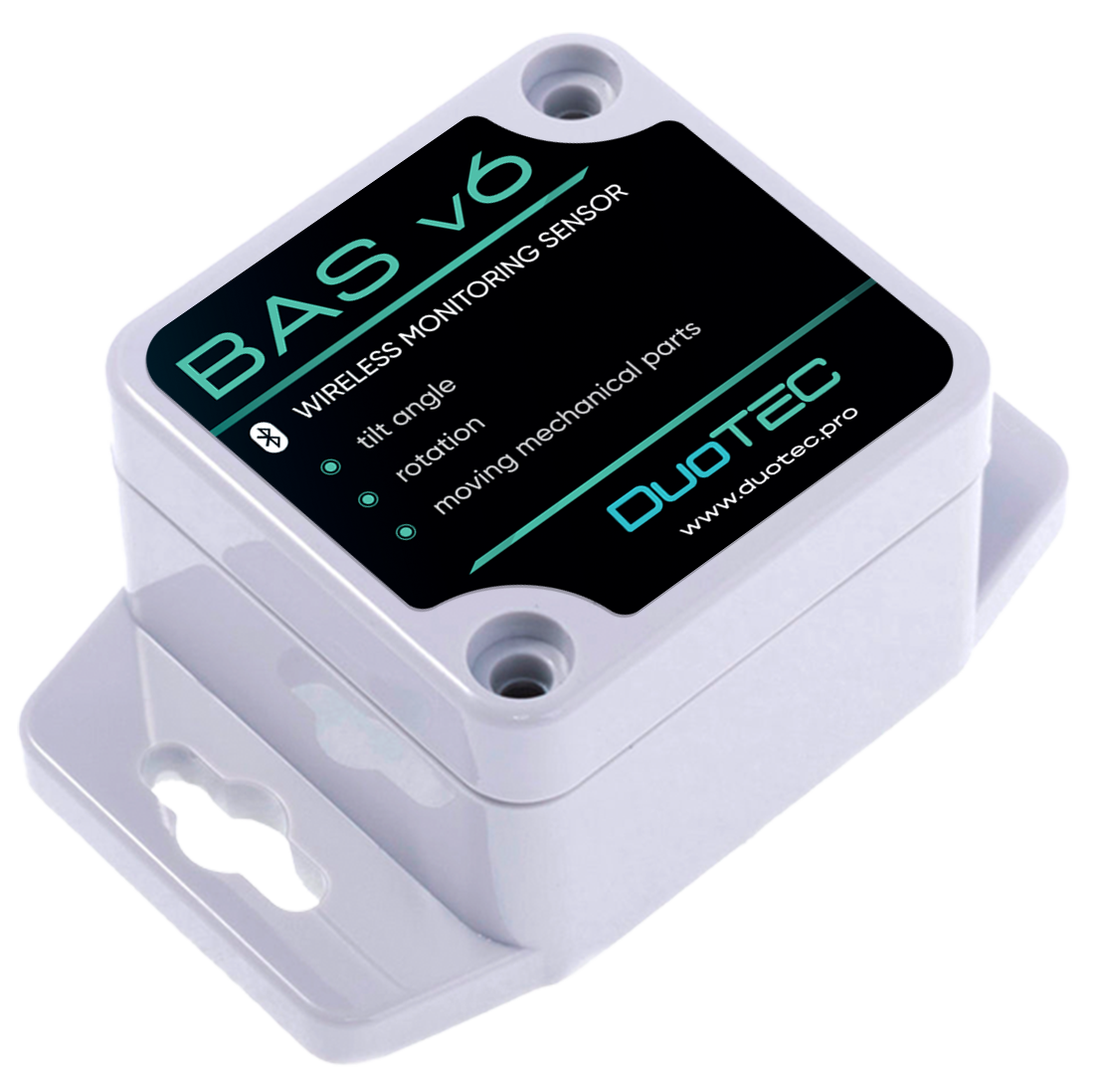

The BASv6 angle sensor has several operating modes:
rotation – monitoring of a concrete mixer truck,
angle – monitoring of a truck crane,
bucket – monitoring of an excavator,
blade – monitoring of special-purpose machinery,
vibration – detection of engine operation,

as well as other application options for monitoring various mechanisms, with the ability to count engine hours. The sensor has a built-in temperature sensor. No external connections are required; all data are transmitted via the wireless Bluetooth (BLE) channel. The sensor is powered by an ER17335 battery with a voltage of 3.6 V. This power source is designed for operation over a wide temperature range. Diagnostics and configuration are performed via the wireless Bluetooth (BLE) channel using the mobile Sensor Configurator application. Data output to third-party devices is carried out via the wireless Bluetooth (BLE) channel; the data format description is provided in the exchange protocol section.

• BLE (Bluetooth): yes
• Motion sensor: yes
• Dimensions (L×W×H): 52×50×35 mm
• Weight: 90 g

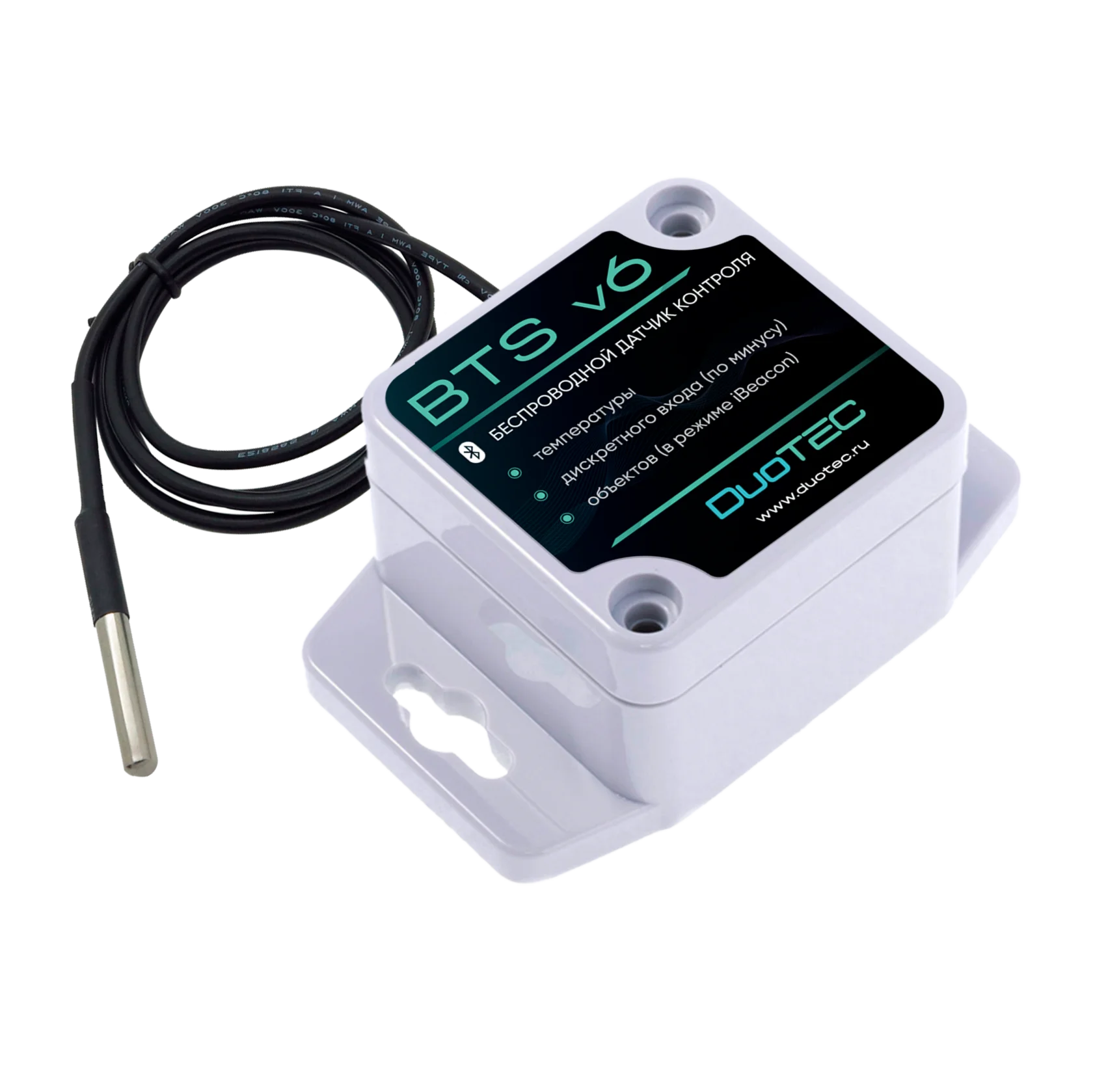

Part No.: BLE-TEMP

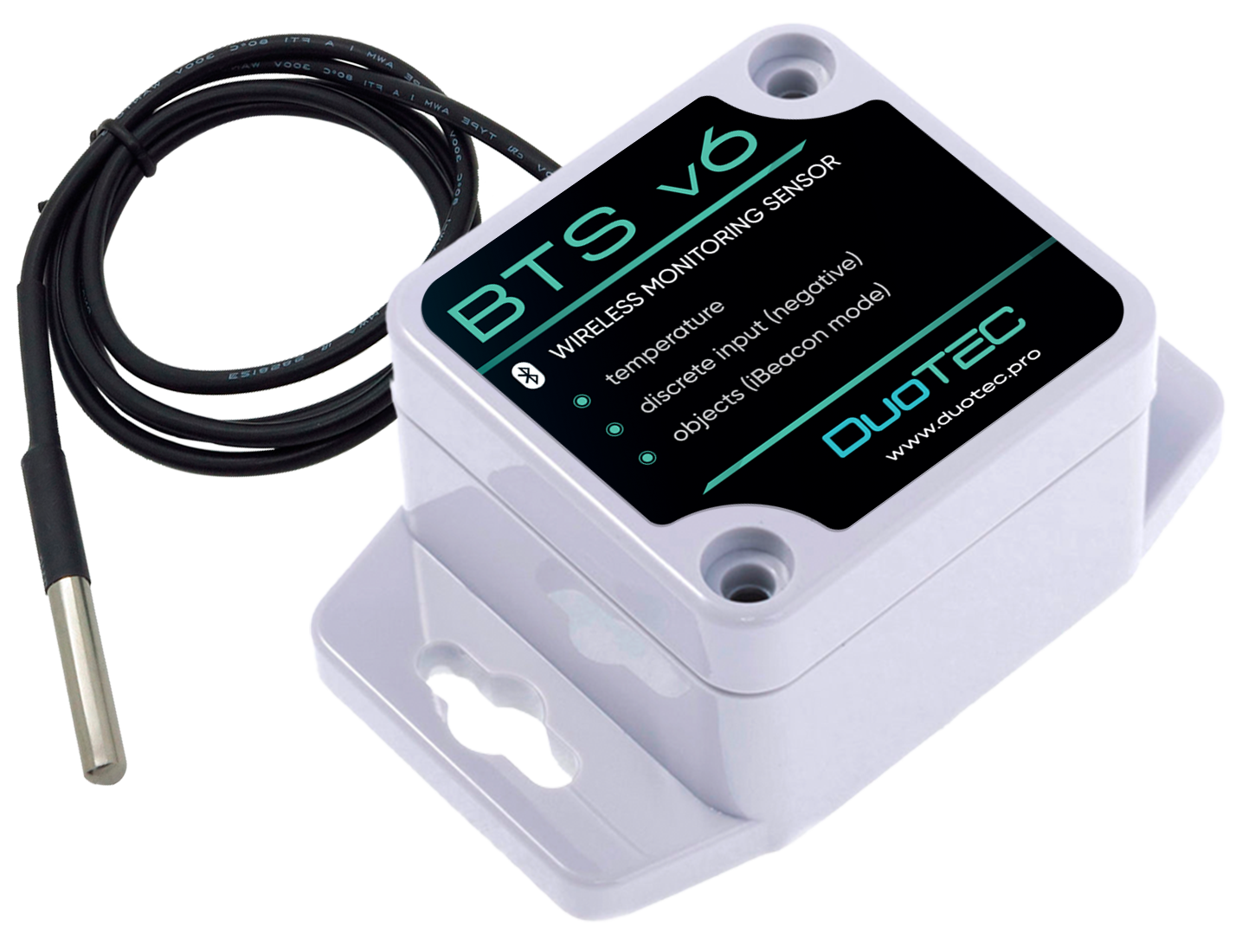

BTSv6 is a universal temperature sensor that measures ambient temperature and can additionally monitor an external “dry contact” circuit (e.g., door open/close), as well as act as an iBeacon tag for convenient detection and identification of assets. The sensor requires no external connections; all data are transmitted via the wireless Bluetooth (BLE) channel. The sensor is powered by an ER17335 battery with a voltage of 3.6 V. This power source is designed for operation over a wide temperature range. Diagnostics and configuration are performed via the wireless Bluetooth (BLE) channel using the mobile Sensor Configurator application. Data output to third-party devices is carried out via the wireless Bluetooth (BLE) channel; the data format description is provided in the exchange protocol section.

• BLE (Bluetooth): yes
• Inputs: 2
• Dimensions (L×W×H): 52×50×35 mm
• Weight: 95 g

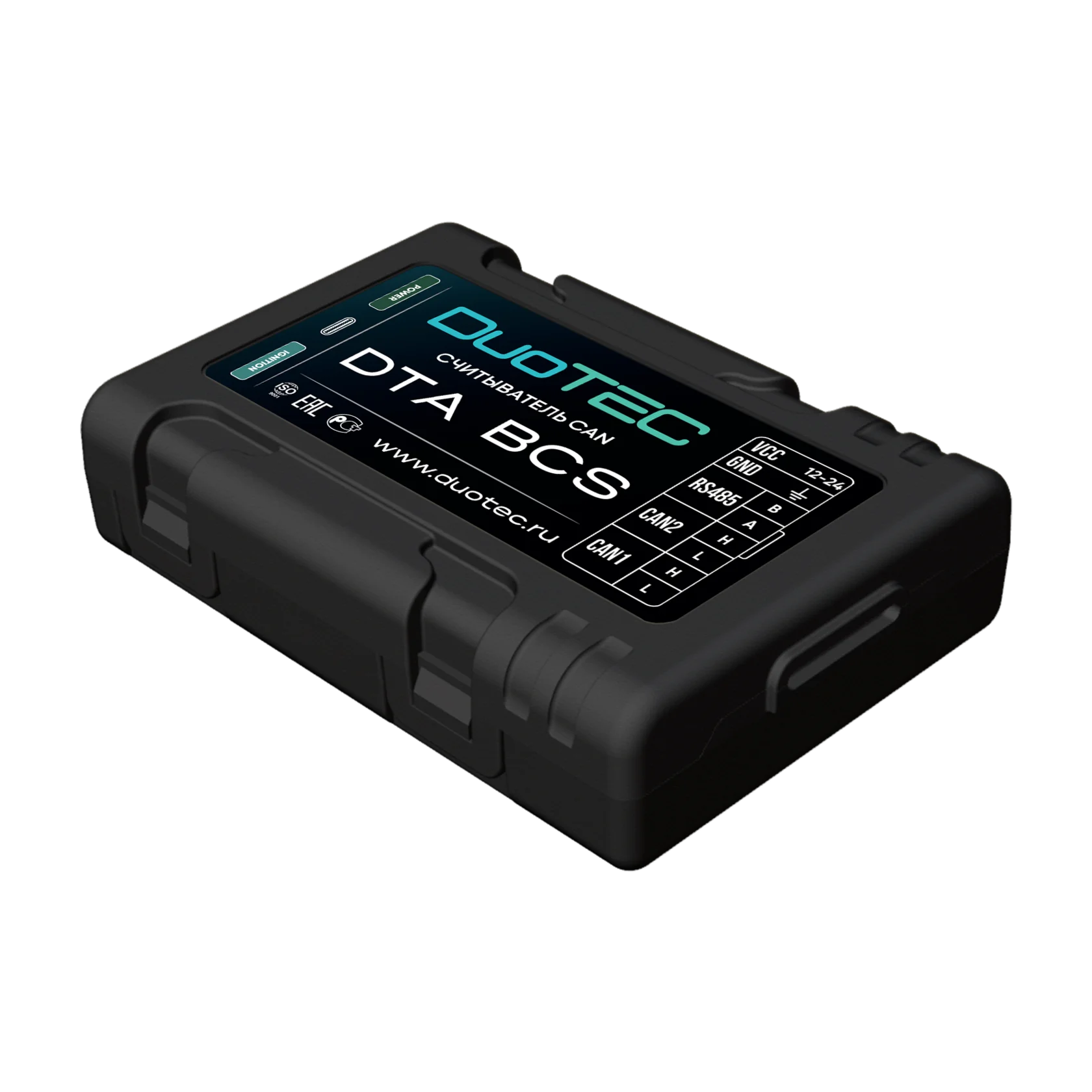

Part No.: CAN

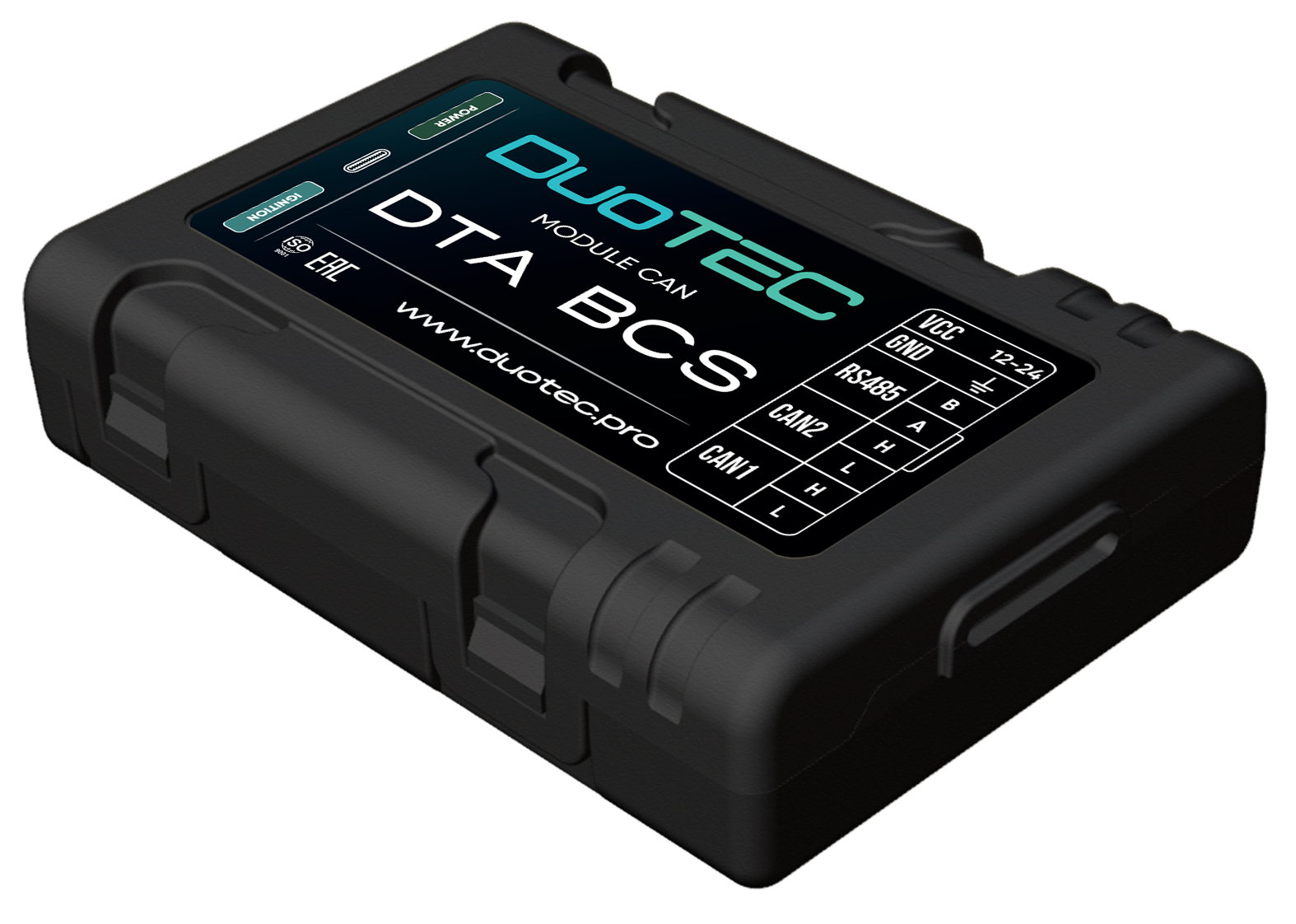

DTA-CAN EXPANSION MODULE
is designed to read data from a vehicle or other technical unit, process it, and then transmit the results via the Bluetooth, RS485, or USB interfaces.

The module can be used for satellite vehicle monitoring, serving as a link between the tracker and the vehicle’s CAN bus.

• CAN: 2 buses
• RS485: yes
• USB: Type-C
• Power supply: 8–40 V
• Dimensions (L×W×H): 61×42×15 mm
• Weight: 40 g
